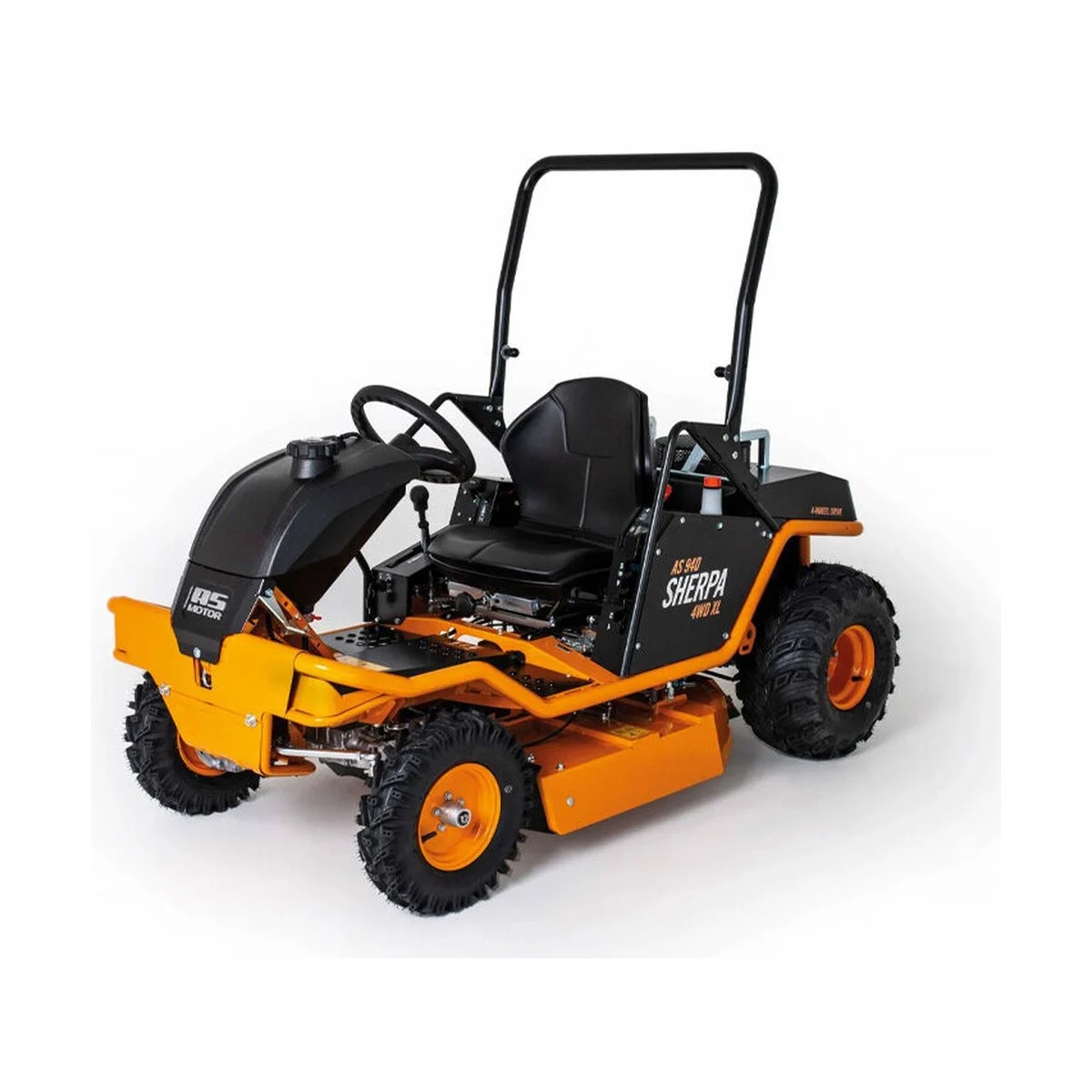

A 90cm permanent 4WD Sherpa with XL field tyres and extra ground clearance, built for rough, steep terrain and powered by a 724cc Briggs & Stratton V Twin.
Enquire for pricing
Or call Adam on 0449 051 847
All products on our website are available for click and collect. As an authorised dealer for Masport, Briggs and Stratton, Victa, Atom, Worldlawn, Maxwatt and AS-Motor across the Tweed Coast and Northern Rivers, all power equipment is pre-set up and ready to go, complete with a full tank of fuel where applicable.
All products are covered by the manufacturer’s standard warranty, and we register your purchase with the manufacturer on your behalf. As an authorised warranty agent, we are your point of contact for all warranty claims.
The AS-Motor AS 940 Sherpa 4WD XL adds larger field tread tyres and extra ground clearance to the Sherpa 4WD platform, making it well suited to rougher paddocks, uneven ground and slopes. At 298kg it remains relatively light for a professional all wheel drive high grass mower.
A 724cc Briggs & Stratton Professional Series V Twin provides 22.4hp rated power and up to 27hp maximum output. Permanent four wheel drive and hydrostatic transmission give smooth control from 0 to 6.7km/h forward and 0 to 6.5km/h in reverse, with the rear differential lock available for demanding traction conditions.
The 90cm surfing mower deck uses the AS cross blade system to cut and mulch high vegetation. Five cutting positions from 80mm to 135mm provide more ground clearance than the standard AS 940, while the deck can move upwards when it contacts uneven ground or obstacles.
Available through ACR Mowers in Cudgen for customers across the Tweed Coast and Northern Rivers.
XL Ground Clearance
Larger field tread tyres and the higher deck range improve clearance on rough terrain and hill crests.
Permanent 4WD
Hydraulic front drive and a hydrostatic rear axle provide strong climbing traction and controlled descending.
Professional High Grass Deck
The closed cross blade deck cuts and mulches dense growth while depositing material centrally behind the deck.
| Cutting Width | 90cm |
| Cutting Height Range | 80mm - 135mm |
| Cutting Height Adjustment | 5 levels |
| Maximum Growth Height | Approx. 150cm |
| Maximum Work Rate | Up to 5,500m²/h |
| Cutting System | AS cross blade system with reversible double sided blades and mulching blade |
| Grass Discharge | Central rear discharge / mulching |
| Engine Manufacturer | Briggs & Stratton |
| Engine Model | 44 Professional Series 8 V-Twin |
| Engine Type | 2 cylinder, 4 stroke OHV |
| Engine Capacity | 724cc |
| Rated Power | 16.5kW / 22.4hp |
| Maximum Power | 20.1kW / 27hp |
| Engine Speed | 3,300rpm |
| Starting System | Electric start |
| Traction Drive | Permanent 4WD |
| Transmission | Hydrostatic with differential lock |
| Forward Speed | 0 - 6.7km/h |
| Reverse Speed | 0 - 6.5km/h |
| Turning Radius | 1.2m |
| Fuel Tank | 15 litres |
| Weight | 298kg |
| Operating Dimensions (L x W x H) | 191 x 106 x 156cm |
| Transverse Stability | 21° under manufacturer standard measurement |
| Uphill / Downhill Stability | 40° under manufacturer standard measurement |
