A professional 90cm high grass ride on mower with permanent 4WD, 724cc Briggs & Stratton V Twin power and a surfing cross blade deck for steep and difficult terrain.
$25,600.00
All products on our website are available for click and collect. As an authorised dealer for Masport, Briggs and Stratton, Victa, Atom, Worldlawn, Maxwatt and AS-Motor across the Tweed Coast and Northern Rivers, all power equipment is pre-set up and ready to go, complete with a full tank of fuel where applicable.
All products are covered by the manufacturer’s standard warranty, and we register your purchase with the manufacturer on your behalf. As an authorised warranty agent, we are your point of contact for all warranty claims.

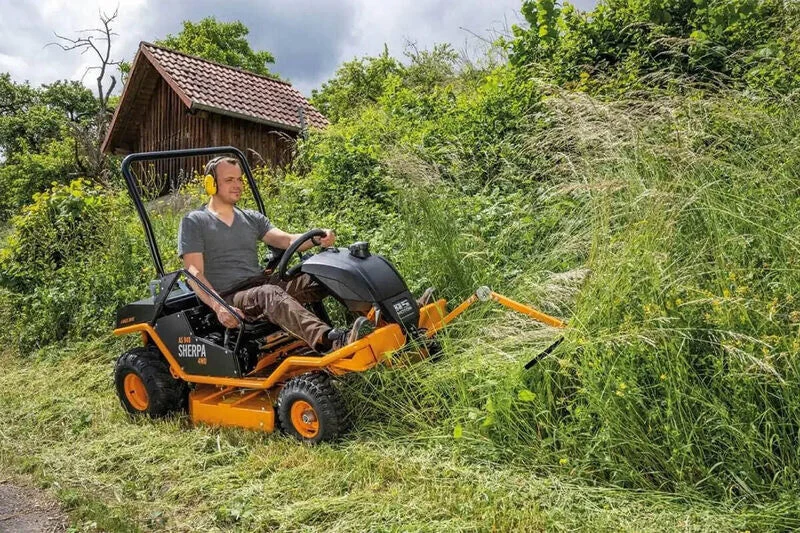

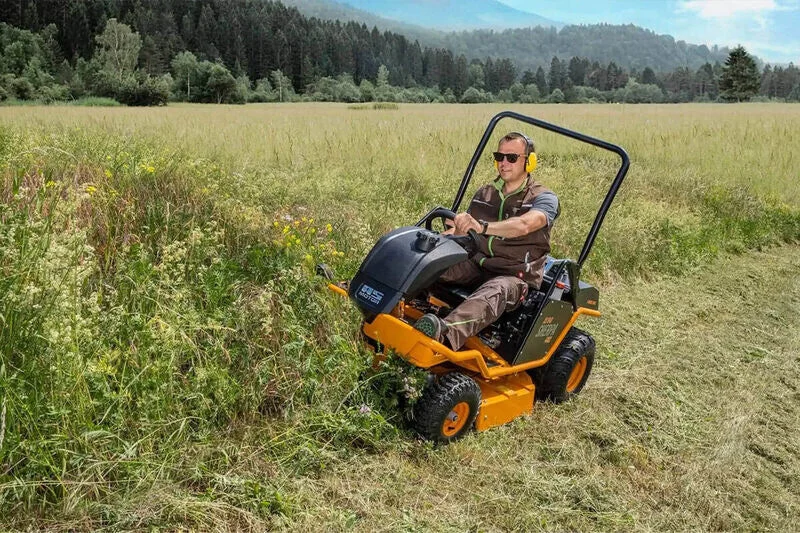

The AS-Motor AS 940 Sherpa 4WD is a professional high grass ride on mower designed for slopes, rough ground and dense vegetation. Permanent four wheel drive improves traction climbing and gives stronger control descending, while the low centre of gravity and compact Sherpa chassis keep the machine stable and manageable.
Its 724cc Briggs & Stratton Professional Series V Twin produces 22.4hp rated output with up to 27hp maximum power. A continuously variable hydrostatic transmission provides precise speed control up to 6.2km/h forward and 6.0km/h in reverse, with a rear differential lock available when extra traction is needed.
The 90cm closed surfing deck uses AS-Motor's cross blade system to cut and mulch growth up to approximately 150cm. Cutting height adjusts through five positions from 50mm to 105mm, and the deck can move upwards over uneven ground to reduce the chance of blade or turf damage.
Available through ACR Mowers in Cudgen for customers across the Tweed Coast and Northern Rivers.
Permanent 4WD

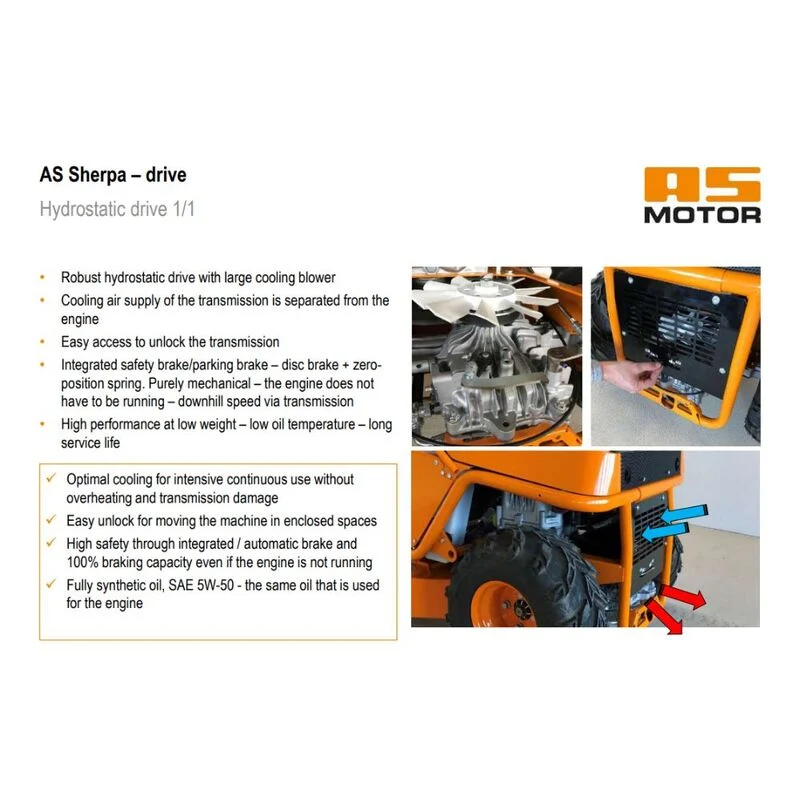

Hydraulic front drive works with the hydrostatic rear axle to maintain traction on demanding ground.
Surfing Mower Deck
The deck follows uneven terrain and can lift over obstacles while keeping the cutting system protected.
Slope Focused Chassis
A low centre of gravity, tubular frame and controlled hydrostatic drive are designed for confident work on inclines.
| Cutting Width | 90cm |
| Cutting Height Range | 50mm - 105mm |
| Cutting Height Adjustment | 5 levels |
| Maximum Growth Height | Approx. 150cm |
| Maximum Work Rate | Up to 5,500m²/h |
| Cutting System | AS cross blade system with reversible double sided blades and mulching blade |
| Grass Discharge | Central rear discharge / mulching |
| Engine Manufacturer | Briggs & Stratton |
| Engine Model | 44 Professional Series 8 V-Twin |
| Engine Type | 2 cylinder, 4 stroke OHV |
| Engine Capacity | 724cc |
| Rated Power | 16.5kW / 22.4hp |
| Maximum Power | 20.1kW / 27hp |
| Engine Speed | 3,300rpm |
| Starting System | Electric start |
| Traction Drive | Permanent 4WD |
| Rear Drive | Hydrostatic transmission with differential lock |

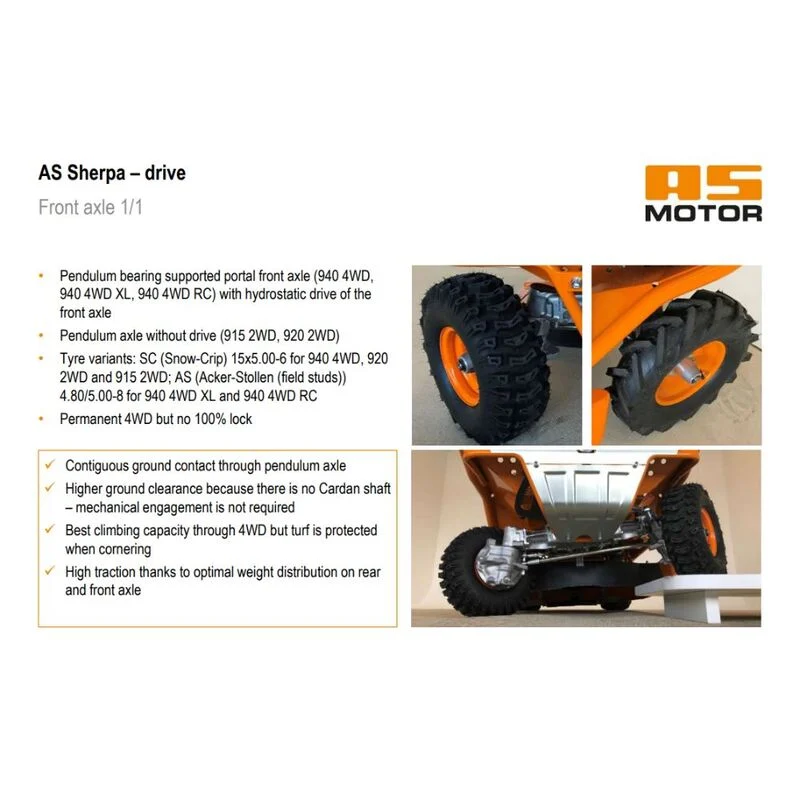

| Front Drive | Pendulum portal axle with two hydraulic motors |
| Forward Speed | 0 - 6.2km/h |
| Reverse Speed | 0 - 6.0km/h |
| Turning Radius | 1.4m |
| Fuel Tank | 15 litres |
| Weight | 290kg |
| Operating Dimensions (L x W x H) | 191 x 98 x 152cm |
| Transverse Stability | 20° under manufacturer standard measurement |
| Uphill / Downhill Stability | 40° under manufacturer standard measurement |
