A heavy duty 90cm walk behind flail mower with a 480cc Vanguard V Twin, 26 pairs of Y flails and five speed transmission for slopes, high grass and dense growth.
$16,990.00
All products on our website are available for click and collect. As an authorised dealer for Masport, Briggs and Stratton, Victa, Atom, Worldlawn, Maxwatt and AS-Motor across the Tweed Coast and Northern Rivers, all power equipment is pre-set up and ready to go, complete with a full tank of fuel where applicable.
All products are covered by the manufacturer’s standard warranty, and we register your purchase with the manufacturer on your behalf. As an authorised warranty agent, we are your point of contact for all warranty claims.

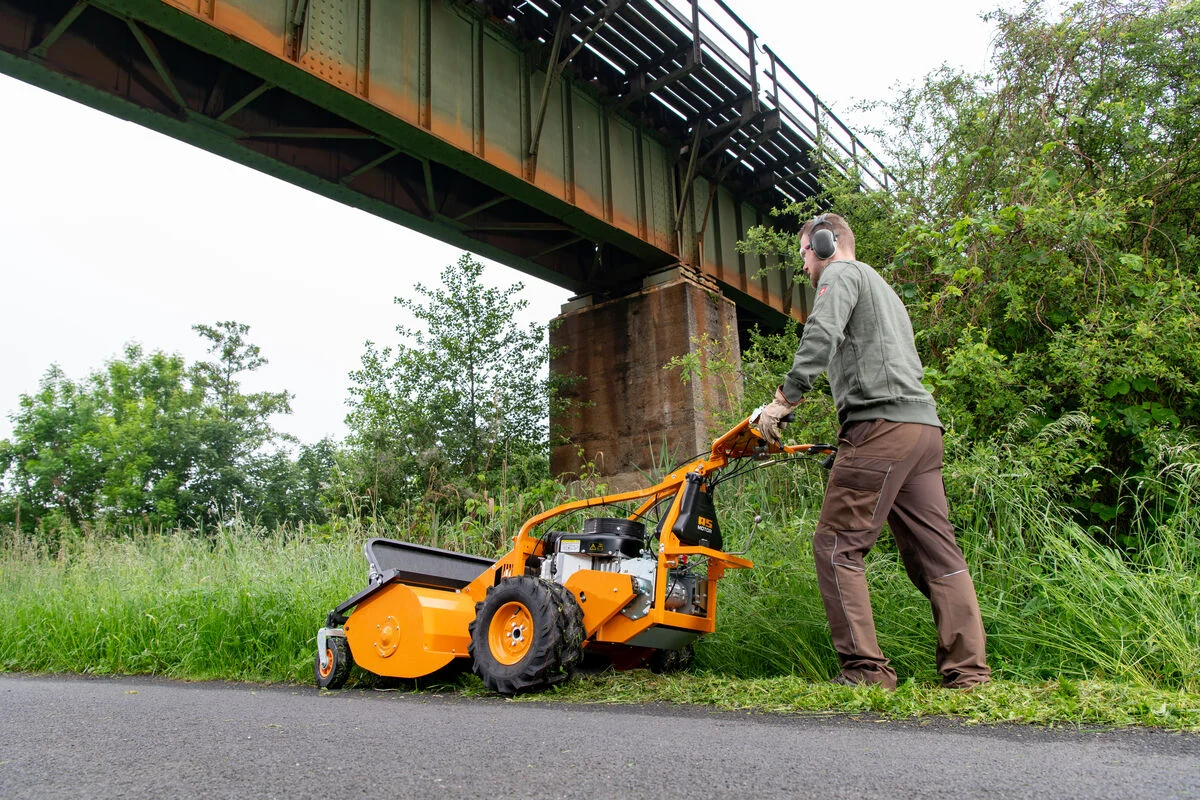

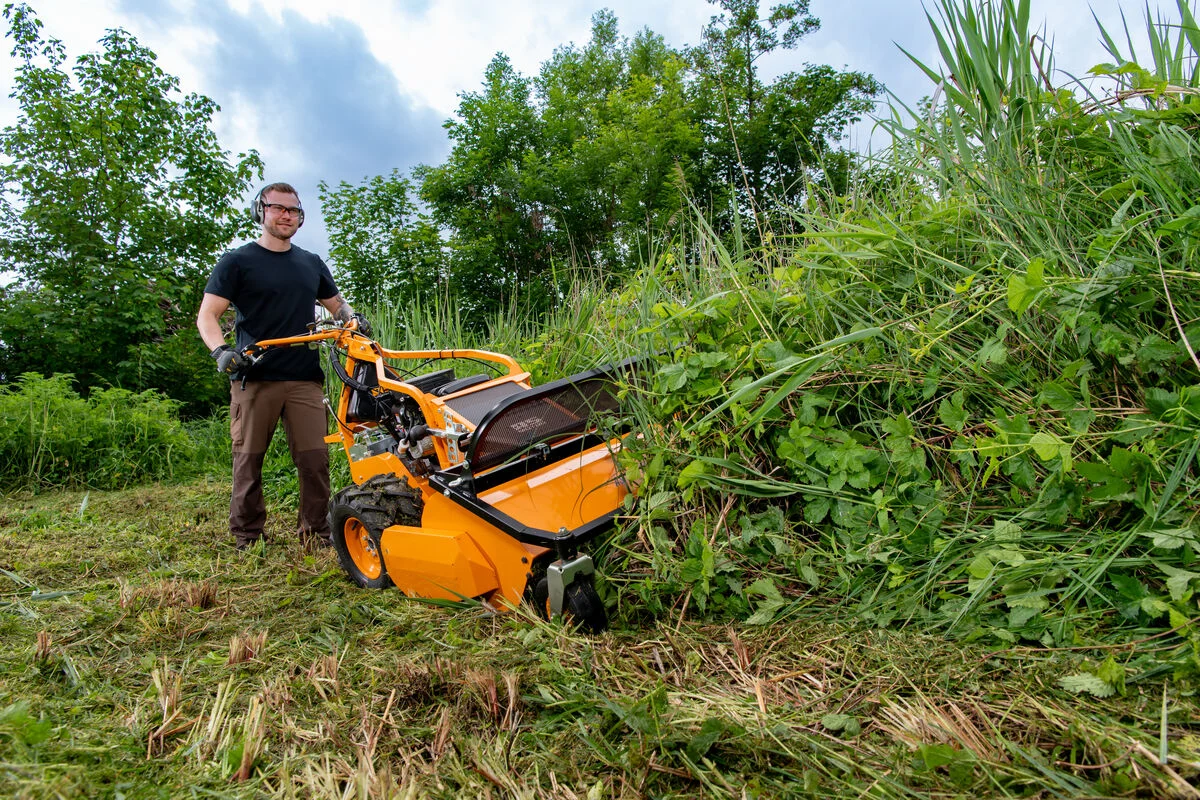

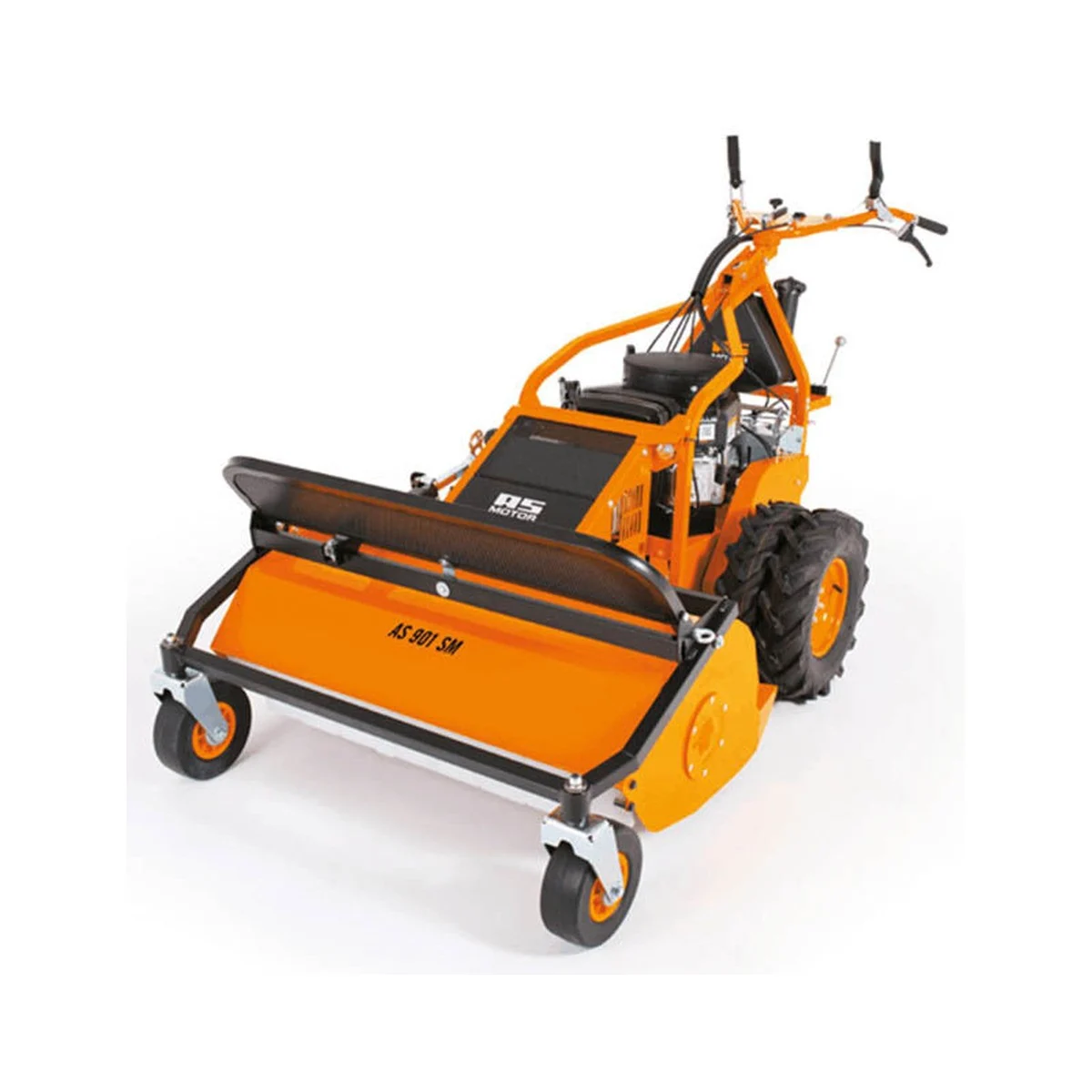

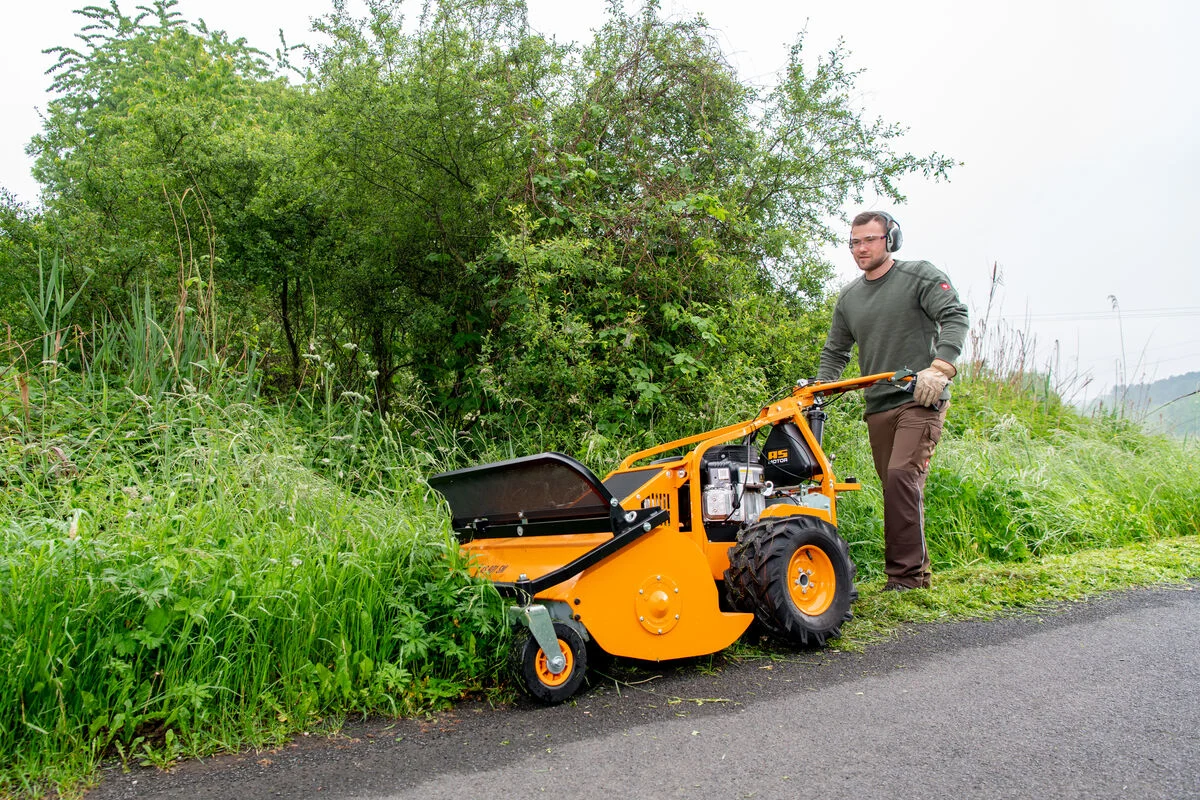

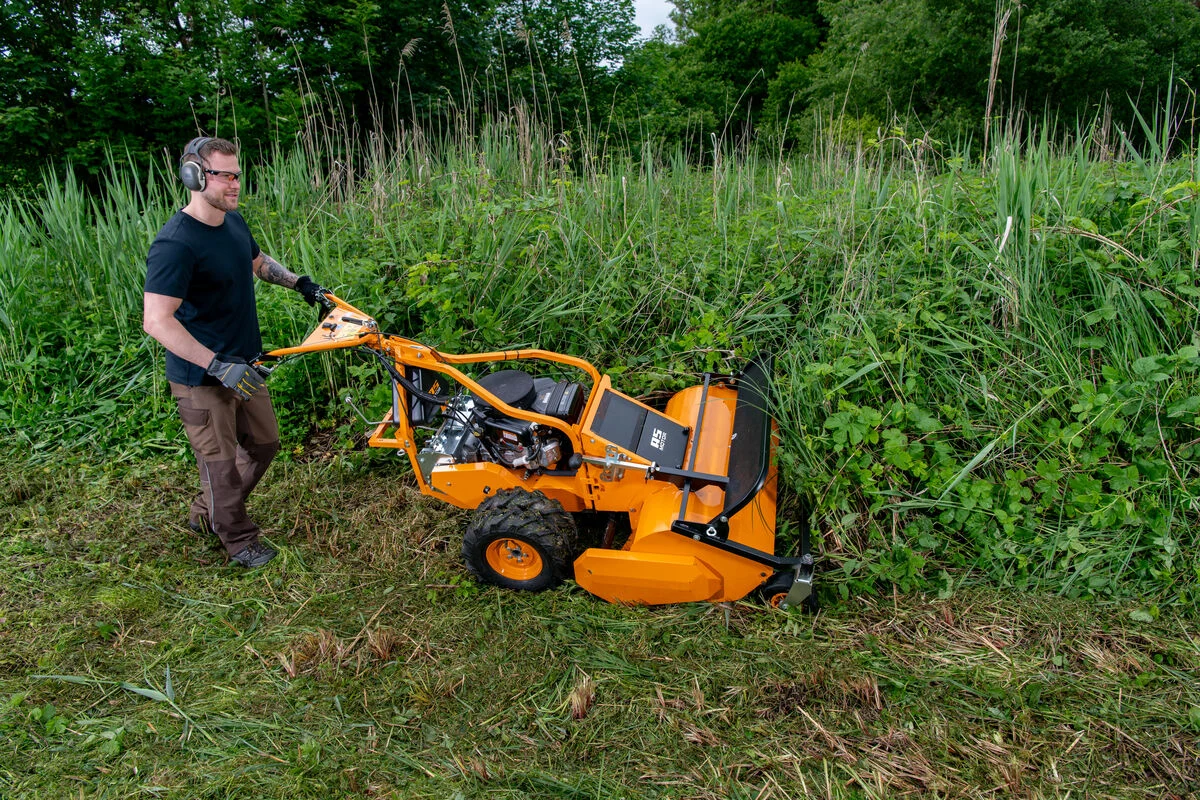

The AS-Motor AS 901 is a professional walk behind flail mower for dense growth, high grass and difficult terrain. Its 90cm flail unit uses 26 pairs of Y flails and pendulum mounting to follow uneven ground while producing a clean, finely shredded finish.
Power comes from a 480cc Briggs & Stratton Vanguard V Twin engine with 14.5hp rated output and up to 16hp maximum power. A five speed manual transmission provides forward speeds from 1.2 to 4km/h plus reverse, while the rear differential, steering and brake clutch system gives the operator precise control on slopes and wet ground.
Cutting height adjusts through six positions from 10mm to 100mm. The automatic parking brake engages when the drive lever is released and the low centre of gravity, twin tyre compatibility and robust frame are designed for sustained professional use.
Available through ACR Mowers in Cudgen for customers across the Tweed Coast and Northern Rivers.
Robust Flail Unit
Pendulum mounting lets the flail deck follow uneven ground and helps the Y flails ride over obstacles.
Controlled Slope Handling
A steering and brake clutch system gives individual wheel control while the parking brake engages automatically when drive is released.
Vanguard V Twin Power
The 480cc two cylinder engine uses oil and fuel pumps for dependable work in demanding terrain.
| Cutting Width | 90cm |
| Cutting Height Range | 10mm - 100mm |
| Cutting Height Adjustment | 6 levels |
| Maximum Growth Height | Approx. 130cm on current Australian product page |
| Maximum Work Rate | Up to 3,600m²/h |
| Cutting System | Flail mower unit with 26 pairs of Y flails |
| Engine Manufacturer | Briggs & Stratton Vanguard |
| Engine Type | 2 cylinder, 4 stroke V Twin |
| Engine Capacity | 480cc |
| Rated Power | 10.7kW / 14.5hp |
| Maximum Power | 11.9kW / 16hp |
| Engine Speed | 3,500rpm |
| Starting System | Rope start |
| Traction Drive | Rear wheel drive with permanently locked differential |
| Transmission | 5 speed manual plus reverse |
| Forward Speeds | 1.2 / 1.6 / 2.6 / 3.2 / 4.0km/h |
| Reverse Speed | 1.8km/h |
| Fuel Tank | 5 litres |
| Weight | 215kg |
| Operating Dimensions (L x W x H) | 220 x 104 x 105cm |
